Содержание

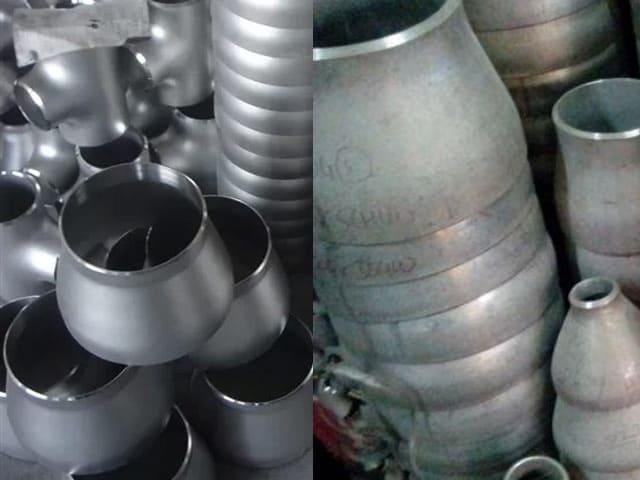

Для грамотного проектирования, правильного монтажа и безопасной эксплуатации различных трубопроводов важны следующие показатели концентрических и эксцентрических бесшовных приварных переходных соединителей:
размеры: диаметры, длина, толщина стенки (в мм) нужны для точной стыковки труб, учёта гидравлики, прочностных характеристик;
масса переходов (в кг) учитывается при расчёте допустимых нагрузок, подборе автотранспорта
На вес детали, кроме размерных параметров, также влияют особенности конструкции, исполнение, марка стали (углеродистая, с различным вхождением легирующих добавок).
В таблице стандарта расчётный вес связан с диаметром (условный, наружный), длиной, толщиной, номинальным давлением и степенью агрессивности перемещаемых составов.
|
Условный проход |
Наружный диаметр |
L |
S |
S1 |
Условное давление Р, МПа (кгс/см2), не более |
Вес, кг не более |
||||
|---|---|---|---|---|---|---|---|---|---|---|
|
транспортируемые вещества |
||||||||||
|
DY |
DY |
DН |
DН |
неагрессивные |
средне агрессивные |
пар и горячая вода |
||||
|
40 |
25 |
45 |
32 |
30 |
2,5 |
2,0 |
10,0 (100) |
2,5 (25) |
10,0 (100) |
0,1 |
|
4,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,2 |
|||||
|
20 |
25 |
2,5 |
1,6 |
10,0 (100) |
2,5 (25) |
10,0 (100) |
0,1 |
|||
|
4,0 |
3,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,2 |
|||||
|
50 |
40 |
57 |
45 |
60 |
4,0 |
2,5 |
10,0 (100) |
6,3 (63) |
10,0 (100) |
0,2 |
|
5,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,3 |
|||||
|
32 |
38 |
45 |
4,0 |
2,0 |
10,0 (100) |
6,3 (63) |
10,0 (100) |
0,2 |
||
|
5,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,3 |
|||||
|
25 |
32 |
4,0 |
2,0 |
10,0 (100) |
6,3 (63) |
10,0 (100) |
0,2 |
|||
|
5,0 |
3,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,3 |
|||||
|
20 |
25 |
4,0 |
1,6 |
10,0 (100) |
6,3 (63) |
10,0 (100) |
0,2 |
|||
|
5,0 |
3,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,3 |
|||||
|
65 |
50 |
76 |
57 |
70 |
3,5 |
3,0 |
10,0 (100) |
4,0 (40) |
10,0 (100) |
0,4 |
|
6,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,7 |
|||||
|
40 |
45 |
3,5 |
2,5 |
10,0 (100) |
4,0 (40) |
10,0 (100) |
0,4 |
|||
|
6,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,6 |
|||||
|
32 |
38 |
55 |
3,5 |
2,5 |
10,0 (100) |
4,0 (40) |
10,0 (100) |
0,3 |
||
|
6,0 |
3,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
0,5 |
|||||
|
80 |
65 |
89 |
76 |
75 |
3,5 |
3,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,6 |
|
6,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
0,9 |
|||||
|
8,0 |
6,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
1,1 |
|||||
|
50 |
57 |
3,5 |
3,0 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,6 |
|||
|
6,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
0,9 |
|||||
|
8,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100)* |
1,1 |
|||||
|
40 |
45 |
3,5 |
2,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,6 |
|||
|
6,0 |
4,0 |
10,0 (100)* |
6,3 (63) |
10,0 (100) |
0,8 |
|||||
|
100 |
80 |
108 |
89 |
80 |
4,0 |
3,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
1,0 |
|
6,0 |
6,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
1,4 |
|||||
|
65 |
76 |
4,0 |
3,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,9 |
|||
|
6,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
1,1 |
|||||
|
50 |
57 |
4,0 |
3,0 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
0,9 |
|||
|
6,0 |
4,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
1,2 |
|||||
|
125 |
100 |
133 |
108 |
100 |
5,0 |
4,0 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
1,7 |
|
8,0 |
6,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
2,6 |
|||||
|
80 |
89 |
4,0 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
1,5 |
|||
|
6,0 |
5,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
1,8 |
|||||
|
8,0 |
6,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
2,4 |
|||||
|
65 |
76 |
5,0 |
3,5 |
10,0 (100) |
4,0 (40) |
6,3 (63) |
1,6 |
|||
|
8,0 |
5,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
2,0 |
|||||
|
50 |
57 |
4,0 |
3,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
1,0 |
|||
|
8,0 |
4,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
2,0 |
|||||
|
150 |
125 |
159 |
133 |
130 |
4,5 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,6 |
|
8,0 |
8,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,1 |
|||||
|
100 |
108 |
4,5 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,4 |
|||
|
8,0 |
6,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
3,7 |
|||||
|
80 |
89 |
4,5 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,2 |
|||
|
8,0 |
6,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
3,4 |
|||||
|
65 |
76 |
75 |
4,5 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
1,5 |
||
|
8,0 |
4,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
2,6 |
|||||
|
50 |
57 |
4,5 |
3,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
1,5 |
|||
|
8,0 |
4,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
2,6 |
|||||
|
200 |
150 |
219 |
159 |
140 |
6,0 |
4,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
5,3 |
|
10,0 |
8,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
7,2 |
|||||
|
125 |
133 |
6,0 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
4,2 |
|||
|
10,0 |
8,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
6,8 |
|||||
|
100 |
108 |
95 |
6,0 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,9 |
||
|
10,0 |
6,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,6 |
|||||
|
80 |
89 |
6,0 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,9 |
|||
|
10,0 |
5,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,6 |
|||||
|
65 |
76 |
6,0 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,9 |
|||
|
10,0 |
5,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,6 |
|||||
|
50 |
57 |
6,0 |
3,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
2,9 |
|||
|
10,0 |
5,0 |
10,0 (100) |
10,0 (100) |
10,0 (100) |
4,6 |
|||||
|
250 |
200 |
273 |
219 |
180 |
7,0 |
6,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
8,6 |
|
10,0 |
8,0 |
10,0 (100) |
6,3 (63) |
6,3 (63) |
11,3 |
|||||
|
12,0 |
10,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
14,6 |
|||||
|
150 |
159 |
7,0 |
4,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
8,1 |
|||
|
10,0 |
6,0 |
10,0 (100) |
6,3 (63) |
6,3 (63) |
10,2 |
|||||
|
12,0 |
10,0 |
10,0 (100)* |
10,0 (100) |
10,0 (100) |
12,3 |
|||||
|
125 |
133 |
140 |
8,0 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
6,8 |
||
|
10,0 |
6,0 |
10,0 (100) |
6,3 (63) |
6,3 (63) |
8,5 |
|||||
|
10,0** |
6,0** |
10,0 (100)* |
8,0 (80) |
8,0 (80) |
8,5 |
|||||
|
100 |
108 |
8,0 |
4,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
6,8 |
|||
|
10,0 |
5,0 |
10,0 (100) |
6,3 (63) |
6,3 (63) |
8,5 |
|||||
|
10,0** |
5,0** |
10,0 (100)* |
8,0 (80) |
8,0 (80) |
8,5 |
|||||
|
300 |
250 |
325 |
273 |
180 |
8,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
12,2 |
|
10,0 |
10,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
14,6 |
|||||
|
12,0 |
12,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
17,2 |
|||||
|
200 |
219 |
10,0 |
8,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
14,0 |
|||
|
12,0 |
10,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
16,1 |
|||||
|
150 |
159 |
140 |
8,0 |
4,5 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
11,4 |
||
|
12,0 |
8,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
15,6 |
|||||
|
125 |
133 |
8,0 |
5,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
11,4 |
|||
|
12,0 |
8,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
15,6 |
|||||
|
100 |
108 |
10,0 |
4,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
13,1 |
|||
|
12,0 |
6,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
15,7 |
|||||
|
350 |
300 |
377 |
325 |
220 |
10,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
20,7 |
|
12,0 |
10,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
24,9 |
|||||
|
14,0*** |
12,0*** |
8,0 (80)* |
8,0 (80) |
6,3 (63)* |
29,1 |
|||||
|
16,0 |
16,0 |
10,0 (100) |
10,0 (100) |
8,0 (80) |
32,8 |
|||||
|
250 |
273 |
10,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
19,4 |
|||
|
12,0 |
10,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
23,3 |
|||||
|
14,0*** |
12,0*** |
8,0 (80)* |
8,0 (80) |
6,3 (63)* |
27,2 |
|||||
|
16,0 |
12,0 |
10,0 (100) |
10,0 (100) |
8,0 (80) |
30,6 |
|||||
|
200 |
219 |
12,0 |
8,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
21,6 |
|||
|
16,0 |
10,0 |
10,0 (100) |
10,0 (100) |
8,0 (80) |
28,4 |
|||||
|
150 |
159 |
12,0 |
6,0 |
8,0 (80) |
6,3 (63) |
6,3 (63) |
20,0 |
|||
|
16,0 |
8,0 |
10,0 (100) |
10,0 (100) |
8,0 (80) |
26,2 |
|||||
|
400 |
350 |
426 |
377 |
220 |
10,0 |
10,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
27,9 |
|
12,0** |
12,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
33,4 |
|||||
|
14,0*** |
14,0*** |
8,0 (80)* |
6,3 (63)* |
6,3 (63)* |
39,1 |
|||||
|
16,0 |
16,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
54,3 |
|||||
|
300 |
325 |
10,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
26,0 |
|||
|
12,0** |
10,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
31,2 |
|||||
|
14,0*** |
12,0*** |
8,0 (80)* |
6,3 (63)* |
6,3 (63)* |
36,4 |
|||||
|
16,0 |
12,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
36,4 |
|||||
|
250 |
273 |
12,0 |
8,0 |
6,3 (63) |
4,0 (40) |
6,3 (63) |
29,5 |
|||
|
12,0** |
10,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
31,2 |
|||||
|
16,0 |
10,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
34,4 |
|||||
|
12,0 |
6,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
27,7 |
|||||
|
12,0** |
8,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
32,3 |
|||||
|
16,0 |
10,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
44,9 |
|||||
|
150 |
159 |
12,0 |
8,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
31,9 |
|||
|
12,0** |
8,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
37,2 |
|||||
|
16,0 |
10,0 |
10,0 (100) |
8,0 (80) |
8,0 (80) |
53,2 |
|||||
|
500 |
400 |
530 |
426 |
300 |
12,0*** |
12,0*** |
4,0 (40) |
2,5 (25) |
2,5 (25) |
52,9 |
|
14,0 |
12,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
61,7 |
|||||
|
14,0** |
12,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
61,7 |
|||||
|
16,0** |
16,0** |
10,0 (100) |
8,0 (80) |
8,0 (80) |
73,6 |
|||||
|
16,0*** |
16,0*** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
73,6 |
|||||
|
350 |
377 |
12,0*** |
12,0*** |
4,0 (40) |
2,5 (25) |
2,5 (25) |
49,7 |
|||
|
14,0 |
12,0 |
6,3 (63) |
4,0 (40) |
4,0 (40) |
57,9 |
|||||
|
14,0** |
12,0** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
57,9 |
|||||
|
16,0** |
16,0** |
10,0 (100) |
8,0 (80) |
8,0 (80) |
70,3 |
|||||
|
16,0*** |
16,0*** |
8,0 (80) |
6,3 (63) |
6,3 (63) |
70,3 |
|||||
Прежде чем купить фитинги производства «ЗСПА» по ценам производителя, можно воспользоваться специальным онлайн-инструментом для расчета веса перехода. Эти цифры важны для расчёта массы партии, для подбора транспорта при доставке по России грузов.
